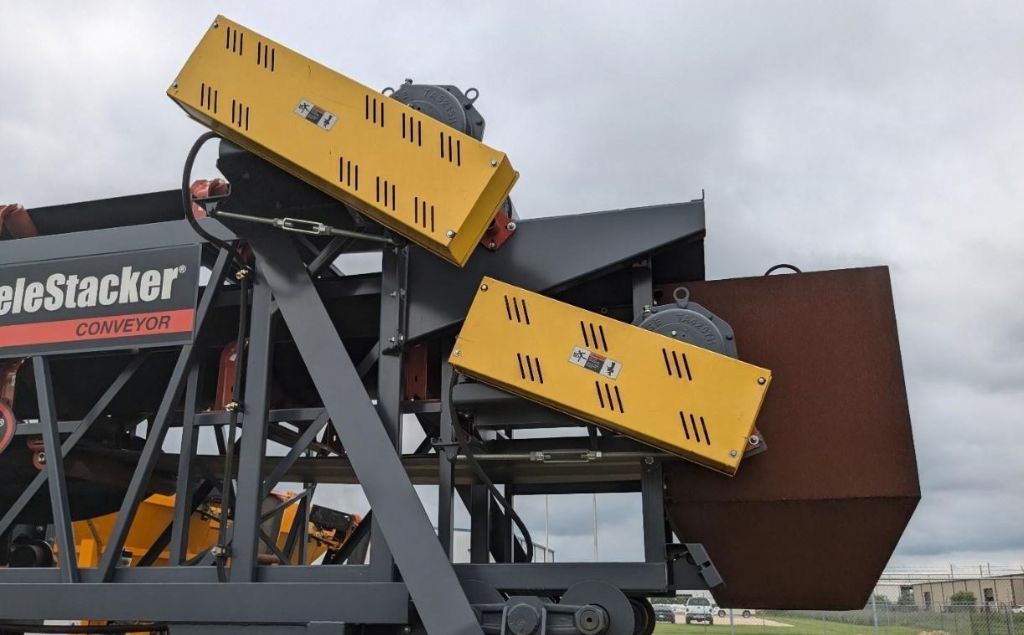

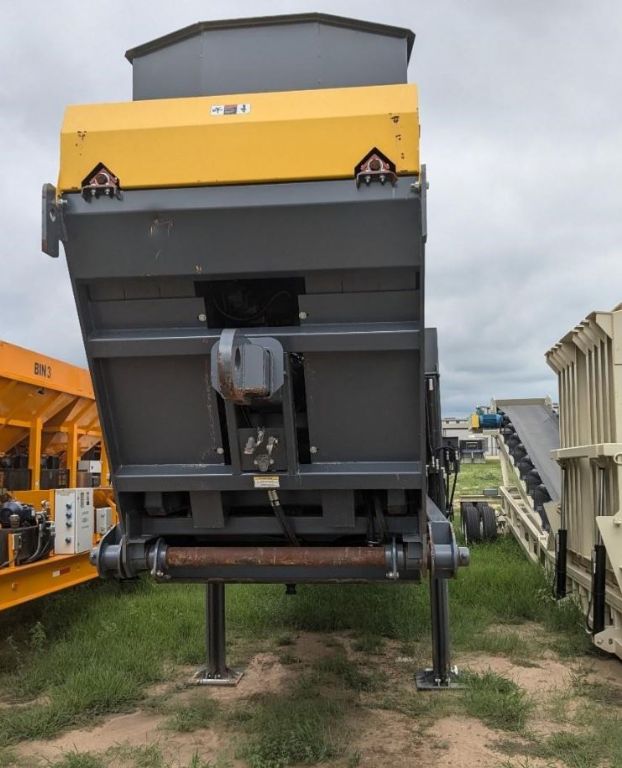

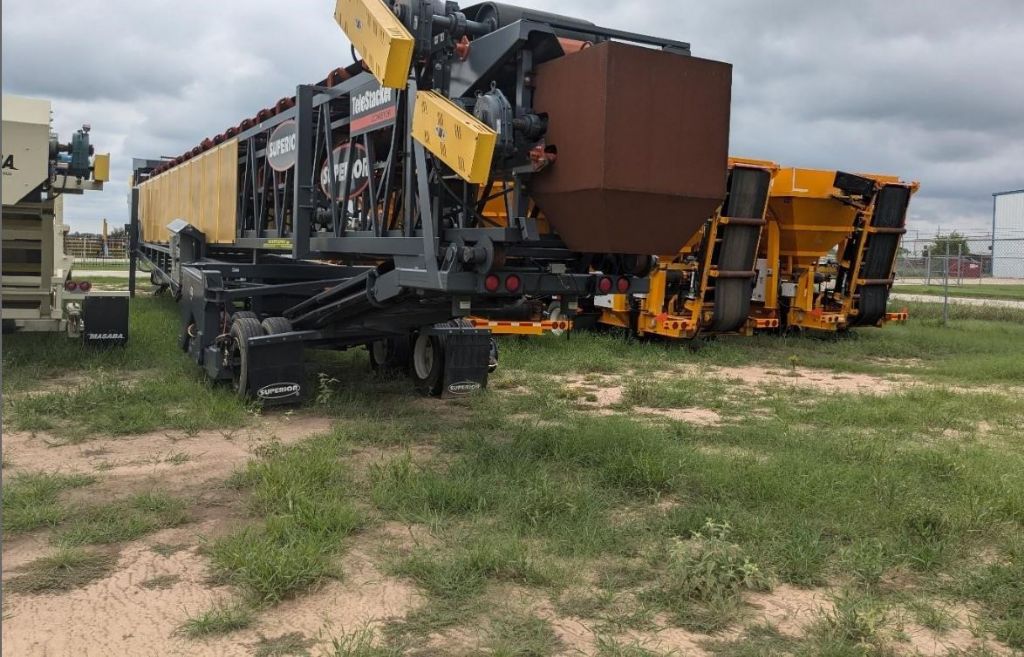

2022 Superior Telestacker 36x150 This 2022 Superior Telestacker features a heavy-duty truss design engineered for maximum strength-to-weight ratio. The main conveyor spans 80 feet with a 70-inch deep truss, while the stinger also measures 80 feet but with a 54-inch deep truss. Fully extended, the conveyor reaches 150 feet, powered by a hydraulic cable winch for efficient operation. The conveyor is equipped with a durable 3-ply 3/16" x 1/16" 330 PIW belting with factory vulcanized splices. Primary scrapers are Superior Exterra models on both the main and stinger. Superior idlers use CEMA C 5-inch diameter rolls with sealed-for-life ball bearings, ensuring reliable performance. The main load area includes the Superior seal system with 10-inch cartridges and steel rollers, complemented by a 35-degree trough on 4-foot spacing and steel can returns on 8-foot spacing. It also features a steel can troughing aligner on the main conveyor and a Superior Navigator on the stinger. Additional components include a rock box-style radial hopper, a 6-foot gathering trough with adjustable rubber flashing, and hydraulic landing legs for stability. Note that spray bars are not included. Located in Houston, TX 77018 For more information, please call 833-265-6113 and mention ID 91413
